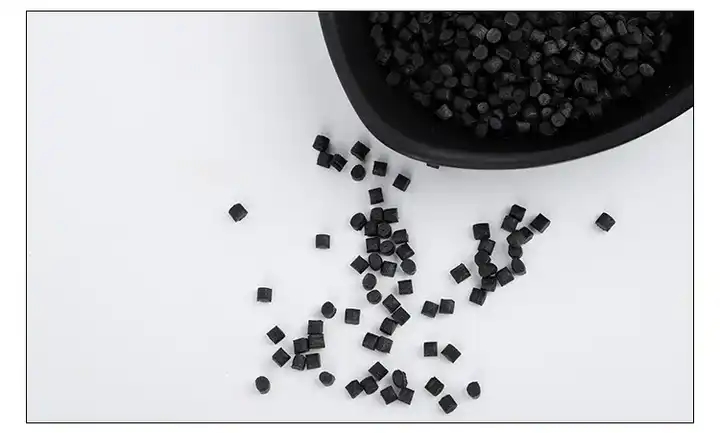

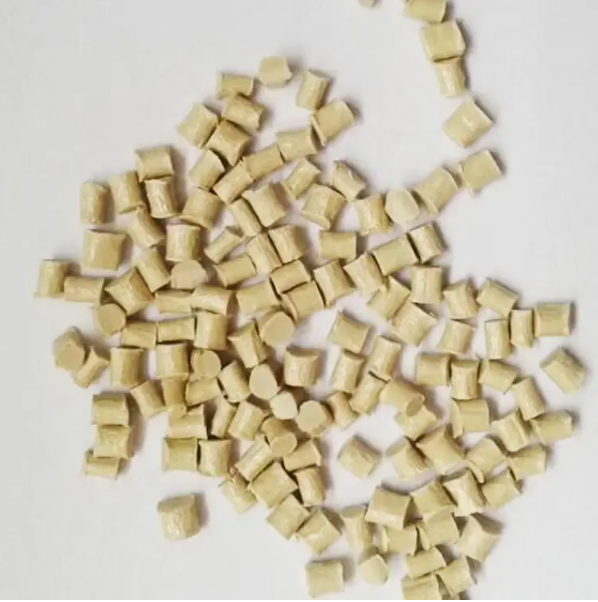

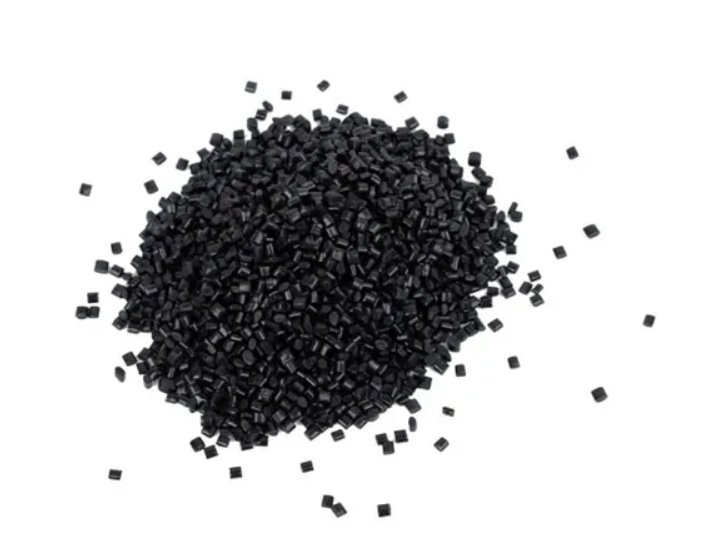

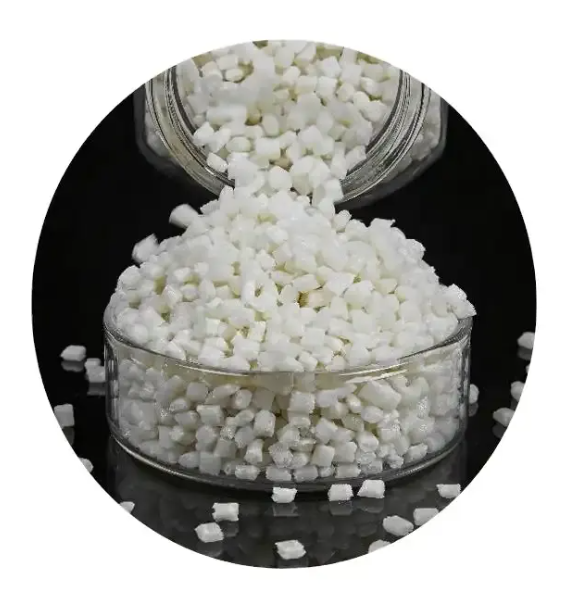

Liquid Crystal Polyester granules LCP+30%GF replace LCP Vectra E130I LCP Plastic

Liquid crystal polymer LCP resin Properties

· Service temperature up to 240ºC, short term up to 340ºC

· Very close tolerances possible (to tolerance class T6)

· Very low heat of fusion (short cycle times possible)

· Flash-free injection molding

· Very high tensile strength (to 200 MPa) and tensile modulus (to 30,000 MPa)

· Very low coefficient of thermal expansion comparable with that of steel and ceramics

· Inherently flame-resistant (UL 94 V-0, some grades with 5 VA)

· Halogen-free without additives

· Very good resistance to chemicals and oxidation

These highly crystalline, thermotropic (melt-orienting) thermoplastics are distinguished from semicrystalline plastics by their special molecular structure, which consists of rigid, rod-like macromolecules that are ordered in the melt phase to form liquid crystal structures.
